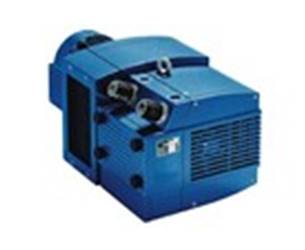

Rotary Vane Combined Pumps 100% Oil Free
| 100% Oil Free Operation | Vacuum and Pressure Regulators Included |
| Quiet | Minimal Maintenance |
| Direct Drive | Separate Inlet Filters for Each Port |
| No Need to Purchase Separate Pumps for Vacuum and Pressure for the Same Application | Adjust Vacuum Flow and Pressure Flow Simultaneously with the Ability to Adjust Either Without Loss of Performance |
Simplicity of design with only one shaft and direct drive produces robust, long-lasting pressure/vacuum generators compressors with low maintenance and running costs. These pressure/vacuum generators operate completely oil-free; the individual chambers are separated by long-life vanes. Already featuring integrated intake filter and control valve, these pressure/vacuum generators can be fitted with other accessories without a problem.
The blast air cooler, which is also integrated, guarantees a very low blast air temperature. The compact cover ensures low noise and heat emission. The combined pressure/vacuum generators are additionally equipped with a second intake. This provides the capability of making minor adjustments to the suction and pressure side as well as to high blast air volumes. By way of option, the second intake can also be used as a second low-vacuum suction air supply.
Optional corrosion protection also makes these vacuum pumps suitable for extracting moist air.
ROTARY VANE OIL-FREE COMBINED (VACUUM/BLOWER) PUMPS - STANDARD SERIES
T Series 4
10 TO 35 m³/h
Up to ±0.6 bar
DVT Series 3
58 to 137 m³/h
Up to ±0.6 bar
DVTLF Series 2
242 to 500 m³/h
±0.5 ba
ROTARY VANE OIL-FREE COMBINED (VACUUM/BLOWER) PUMPS - X SERIES
X Series 4
10 TO 35 m³/h
Up to ±0.6 bar
DVT Series 3
58 to 137 m³/h
±0.6 bar
| Model Number | Open Flow (m3/h) | Pressure (mbar) | Motor (kW) | Download PDF |
|---|---|---|---|---|
| T 4.16 DV | 16 | ±500 | 0.55 | view |
| T 4.25 DSK | 25 | ±600 | 1.1 | view |
| T 4.40 DSK | 35 | ±600 | 1.85 | view |
| DVT 3.60 | 58 | ±600 | 2.4 | view |
| DVT 3.80 | 70 | ±600 | 4 | view |
| DVT 3.100 | 103 | ±600 | 5.5 | view |
| DVT 3.140 | 137 | ±600 | 7.8 | view |
| All figures are maximums at 50Hz unless stated. mbars are absolute. | ||||
COMBINED PUMPS ROTARY VANE 100% OIL FREE: SERIES X
| 100% Oil Free Operation | Vacuum and Pressure Regulators Included |
| Quiet | Minimal Maintenance |
| Direct Drive | Separate Inlet Filters for Each Port |
| Clean and Quiet | Wear Resistant |
| Vibration Stable | Long-Life Reliable |
| Energy Savings | At least 20,000 maintenance-free operating hours |
| No Need to Purchase Separate Pumps for Vacuum and Pressure for the Same Application | Adjust Vacuum Flow and Pressure Flow Simultaneously with the Ability to Adjust Either Without Loss of Perrformance |
With this special development [suitable for the application], Becker extends its popular T product range by the compact models X 4.10 DV to X 4.40 DSK.
Equipped with completely newly developed vanes, these oil-free X rotary vane pumps distinguish themselves by high abrasion resistance and with that extremely long service lives. And since no dust develops where there is virtually no wear, the devices of the Series X are perfectly suited for precision processes under clean room conditions.
An additional reliability plus is the on-site service by Becker in case of need. Exchange installations and the downtimes associated with that are no longer an issue anymore.

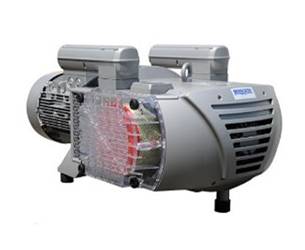

COMBINED PUMPS EPV SERIES 100% OIL FREE
| 100% Oil Free Operation | Vacuum and Pressure Regulators Included |
| Quiet | Minimal Maintenance |
| Direct Drive | Separate Inlet Filters for Each Port |
| Clean | Transparent Inlet Filter Covers |
| Quiet | Wear Resistant |
| Vibration Stable | Long-Life Reliable |
| Energy Savings | At least 20,000 maintenance-free operating hours |
| No Need to Purchase Separate Pumps for Vacuum and Pressure for the Same Application | Adjust Vacuum Flow and Pressure Flow Simultaneously with the Ability to Adjust Either Without Loss of Performance |
TWICE THE OUTPUT – APPLICATION FLEXIBILITY – ALL IN A SINGLE UNIT
The new E-Series Elliptical pumps from Becker challenge the adage that there’s nothing new in the world.
The E-Series pump is a new concept in pump design, combining one rotor and two compression chambers to yield a pump with 4 specific configurations: 2 Vacuum pumps; 2 compressors; independent pressure and vacuum pumps; or 2 combined pressure/vacuum pumps.
In the EPV series, the piston for the first time turns in an elliptical housing: instead of creating a single compression chamber as hitherto, this produces two independent ones. These can be combined in numerous ways or used separately from each other. Whether in the vacuum, pressure, combined or even double-combined pressure/vacuum operating mode, virtually everything is possible.
What’s more, the compression chambers can be of different sizes to meet specific customer needs. Need more blast air flow than vacuum? No problem. More vacuum flow than pressure? We can do that, too. The EPV series covers a delivery range of 2x40m³/h to 2x100m³/h and attains a final vacuum of 100 mbar absolute as well a pressure of +2.0 bar.
Unlike twin-shaft vacuum pumps and compressors, these units are 100% oil-free in the way they work (no drive gear). The single-shaft design and the number of compression chambers guarantee low-pulsation suction and/or blast air as well as low noise. These pumps are truly oil-less, unlike other pumps that say they are, but still require oil. Noise levels have been reduced by using lower rotational speeds, and employing sound deadening shrouds all around the pump. These shrouds double as air manifolds.
The revised design and modified piston/housing configuration give the rotary vanes a service life of over 20,000 hours. Significantly larger filter areas lead to noticeably longer maintenance intervals, also for the intake filters. In addition, the degree of filter soiling can simply be identified through a transparent filter cover.
Wide voltage range motors mean that delivery can be faster because one motor covers most voltages in use worldwide, which eliminates special orders.
We’ve integrated all the accessories to save space and make installation easier: vacuum and pressure regulating valves, blast air coolers, inlet filters, dust separators, and silencers.
Finally, a single E-Series elliptical pump can replace as many as four individual pumps, depending on your application.
