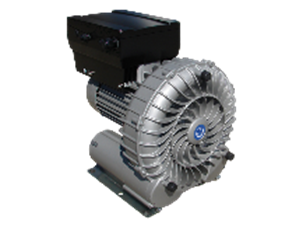

100% OIL FREE SIDE CHANNEL VACUUM PUMPS
- 100% Oil Free operation
- Quiet
- Integrated vacuum or pressure relief valve*
- Integrated inlet filter*
- Compact
- Some models are available with lower HP motors for applications requiring less capacity or pressure.
- Minimal maintenance
- High performance
- Contact-less
- Single stage can convert to two stage operation
- Two stage can convert to a single stage
** On series 7 & 8 only
Using “multi-stage” compression, side channel vacuum pumps generate low-pulsation suction air. Perfected impeller design with curved blades guarantees Optimum efficiency. Separation of the compression chambers on both sides of the impeller permits single-stage, twin-flow as well as two-stage, single-flow operation with only one impeller.
Vacuum filter and vacuum safety valve can be integrated as an optional extra in the patented design of the sound absorbers. The sound absorbers can be varied in length, affording flexible adjustment to available installation space.
To download the brochure showing the sizes and technical specifications of the Side Channel Vacuum Pumps, please click here. Individual data sheets for each size are available below.
130 to 1050 m³/h
Up to -355 mbar rel.
285 to 1600 m³/h
Up to -370 mbar rel.
48 to 143 m³/h
Up to -290 mbar rel.
70 to 520 m³/h
Up to -440 mbar rel.
140 to 560 m³/h
Up to -420 mbar rel.
24 to 71 m³/h
Up to -560 mbar rel.
SIDE CHANNEL VACUUM PUMPS - SINGLE STAGE
SV Single Stage
130 to 1050 m³/h
Up to -355 mbar rel.
SV Single Stage VAU
285 to 1600 m³/h
Up to -370 mbar rel.
VASF…/1
48 to 143 m³/h
Up to -290 mbar rel.
SIDE CHANNEL VACUUM PUMPS - DOUBLE STAGE STAGE
SV Double Stage
70 to 520 m³/h
Up to -440 mbar rel.
SV Double Stage VAU
140 to 560 m³/h
Up to -420 mbar rel.
VASF…/2
24 to 71 m³/h
Up to -560 mbar rel.
| Model Number | Open Flow (m3/h) | Vacuum (mbar) | Motor (kW) | Download (PDF) |
|---|---|---|---|---|
| SV 5.90/1 | 75 | 895 | 0.37 | view |
| SV 8.130/1 | 120 | 800 | 1.25 | view |
| SV 8.160/1 | 145 | 800 | 1.5 | view |
| SV 8.190/1 | 181 | 750 | 2 | view |
| SV 5.250/1 | 241 | 810 | 2 | view |
| SV 5.300/1 | 325 | 650 | 5.5 | view |
| SV 7.330/1 | 290 | 725 | 3 | view |
| SV 8.400/1 | 410 | 700 | 5.5 | view |
| SV 7.430/1 | 415 | 760 | 4 | view |
| SV 5.490/1 | 472 | 700 | 5.5 | view |
| SV 5.690/1 | 720 | 715 | 7.5 | view |
| SV 5.1050/1 | 1080 | 735 | 11 | view |
| SV 5.90/2 | 43 | 770 | 0.37 | view |
| SV 8.130/2 | 65 | 700 | 1.25 | view |
| SV 8.160/2 | 75 | 700 | 1.5 | view |
| SV 8.190/2 | 98 | 625 | 2 | view |
| SV 5.250/2 | 130 | 600 | 2 | view |
| SV 7.330/2 | 155 | 600 | 3 | view |
| SV 8.400/2 | 210 | 620 | 5.5 | view |
| SV 7.430/2 | 235 | 675 | 3 | view |
| SV 5.690/2 | 355 | 600 | 5.5 | view |
| All figures are maximums at 50Hz unless stated. mbars are absolute. | ||||
| In the model number /1 = single stage and /2 = double stage. | ||||
